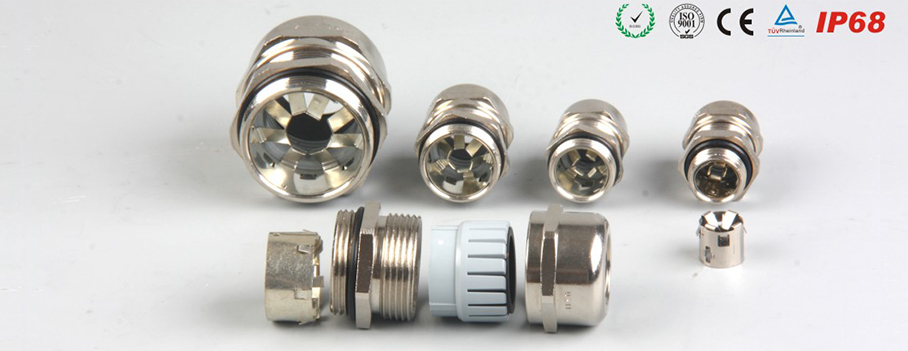

> 防電磁型金屬電纜接頭

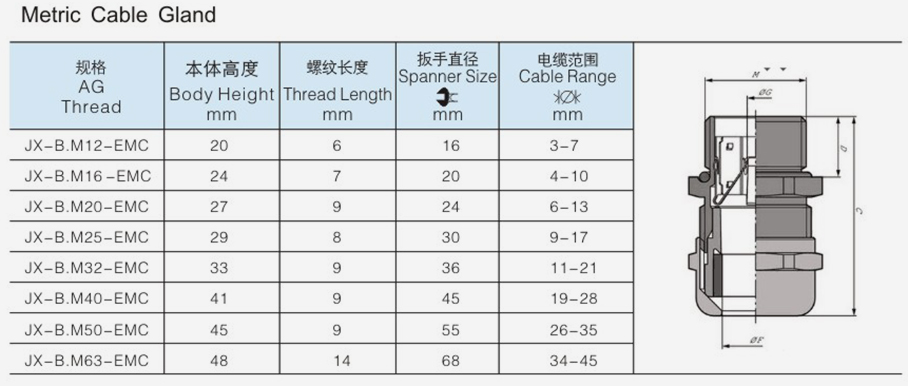

公制螺紋M型B系列
防電磁型金屬電纜接頭公制螺紋M型 | ||||||||
產(chǎn)品編號 | 螺紋規(guī)格 AG | 適用電纜(mm) | 螺紋外徑(mm) | 機板口徑(mm) | 螺紋長度 GL(mm) | 接合長度H(mm) | 扳手直徑(mm) | 包裝(個/袋) |
JX-EMC01 | M8*1 | 4-2 | 8 | 8-8.2 | 5 | 16 | 11 | 200 |
JX-EMC02 | M10*1 | 6-3 | 10 | 10-10.2 | 5 | 16 | 12 | 100 |
JX-EMC03 | M12*1.5 | 6.5-3 | 12 | 12-12.2 | 7 | 19 | 14 | 100 |
JX-EMC04 | M14*1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 17 | 100 |
JX-EMC05 | M16*1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 | 100 |
JX-EMC06 | M18*1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 | 100 |
JX-EMC07 | M20*1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 | 100 |
JX-EMC08 | M22*1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 | 100 |
JX-EMC09 | M24*1.5 | 14-10 | 24 | 24-24.2 | 9 | 25 | 24/27 | 50 |
JX-EMC10 | M25*1.5 | 14-10 | 25 | 25-25.2 | 9 | 25 | 24/27 | 50 |
JX-EMC11 | M25*1.5 | 18-13 | 25 | 25-25.2 | 9 | 27 | 30 | 50 |
JX-EMC12 | M27*1.5 (2) | 18-13 | 27 | 27-27.2 | 9 | 27 | 30 | 50 |
JX-EMC13 | M28*1.5 (2) | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 | 50 |
JX-EMC14 | M30*1.5 (2) | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 | 50 |
JX-EMC15 | M32*1.5 (2) | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 | 25 |
JX-EMC16 | M33*1.5 (2) | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 | 30 |
JX-EMC17 | M36*1.5 (2) | 25-18 | 36 | 36-36.2 | 10 | 31 | 40 | 20 |
JX-EMC18 | M37*1.5 (2) | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 | 20 |
JX-EMC19 | M40*1.5 (2) | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 | 16 |
JX-EMC20 | M40*1.5 (2) | 30-22 | 40 | 40-40.2 | 11 | 35 | 45 | 16 |
JX-EMC21 | M42*1.5 (2) | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 | 16 |
JX-EMC22 | M47*1.5 (2) | 33-25 | 47 | 47-47.2 | 11 | 37 | 50 | 12 |
JX-EMC23 | M48*1.5 (2) | 33-25 | 48 | 48-48.2 | 11 | 37 | 50 | 12 |
JX-EMC24 | M50*1.5 (2) | 38-32 | 50 | 50-50.2 | 12 | 37 | 55/57 | 9 |
JX-EMC25 | M54*1.5 (2) | 38-32 | 54 | 54-54.2 | 12 | 38 | 57 | 9 |
JX-EMC26 | M56*1.5 (2) | 38-32 | 56 | 56-56.2 | 12 | 38 | 57/59 | 9 |
JX-EMC27 | M60*1.5 (2) | 44-37 | 60 | 60-60.2 | 13 | 38 | 65 | 6 |
JX-EMC28 | M63*1.5 (2) | 44-37 | 63 | 63-63.2 | 13 | 38 | 65 | 6 |
JX-EMC29 | M64*1.5 (2) | 44-37 | 64 | 64-64.2 | 13 | 38 | 65/68 | 6 |
JX-EMC30 | M72*1.5 (2) | 52-42 | 72 | 72-72.2 | 15 | 42 | 77 | 4 |
JX-EMC31 | M75*1.5 (2) | 52-42 | 75 | 75-75.2 | 15 | 42 | 77 | 4 |
JX-EMC32 | M80*1.5 (2) | 62-55 | 80 | 80-80.2 | 15 | 45 | 90 | 4 |
JX-EMC33 | M88*1.5 (2) | 70-65 | 88 | 88-88.2 | 15 | 45 | 94 | 2 |
JX-EMC34 | M100*1.5 (2) | 84-78 | 100 | 100-100.2 | 15 | 45 | 110 | 1 |
上一條:公制螺紋M型系列A系列

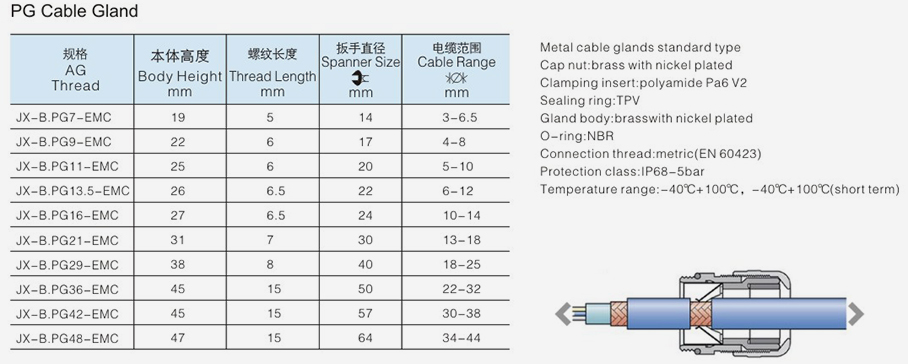

下一條:德制螺紋PG型系列
